Metadata#

Demonstrate the Synoptic Metadata service with SynopticPy.

[1]:

from datetime import datetime

import polars as pl
import seaborn as sns
import matplotlib.pyplot as plt

import matplotlib.pyplot as plt

plt.rcParams["font.sans-serif"] = "Mona-Sans"  # or 'Hubot-Sans
plt.rcParams["font.monospace"] = "Fira Code"

import synoptic
from herbie.toolbox import EasyMap, pc, ccrs

/home/blaylock/miniconda3/envs/synoptic2/lib/python3.12/site-packages/pyproj/__init__.py:89: UserWarning: pyproj unable to set database path.
  _pyproj_global_context_initialize()

Synoptic’s station metadata service allows you to get just the metadata of stations you are interested in and filter based on station selection parameters.

Let’s start by getting metadata from good ‘ol trusty WBB…

[2]:

s = synoptic.Metadata(stid="wbb")
s.df()

🚚💨 Speedy delivery from Synoptic metadata service.
📦 Received data from 1 stations.

[2]:

shape: (1, 14)

id	stid	name	elevation	latitude	longitude	mnet_id	state	timezone	elev_dem	period_of_record_start	period_of_record_end	is_restricted	is_active
u32	str	str	f64	f64	f64	u32	str	str	f64	datetime[μs, UTC]	datetime[μs, UTC]	bool	bool
1	"WBB"	"U of U William Browning Buildi…	4806.0	40.76623	-111.84755	153	"UT"	"America/Denver"	4727.7	1997-01-01 00:00:00 UTC	2024-11-10 05:25:00 UTC	false	true

We can also get all the stations in Utah that report air temperature, but only those that reported air temp since January 1, 2024. To make things interesting (and to showcase Poalrs), lets sort by the stations with the longest period of record.

After looking at the result, I wouldn’t take too much stock in Synoptics period-of-record database. It has errors like some stations with records back to 1970 (if you tried getting data that far back Synoptic will tell you the “Query start and/or end time outside valid time range” error) and some stations have end dates after start dates.

[3]:

s = synoptic.Metadata(state="UT", vars="air_temp", obrange=datetime(2024, 1, 1))

df = (
    s.df()
    .with_columns(
        duration_of_record=pl.col("period_of_record_end")
        - pl.col("period_of_record_start")
    )
    .sort("duration_of_record", descending=True)
)
df

🚚💨 Speedy delivery from Synoptic metadata service.
📦 Received data from 1,377 stations.

[3]:

shape: (1_377, 15)

id	stid	name	elevation	latitude	longitude	mnet_id	state	timezone	elev_dem	period_of_record_start	period_of_record_end	is_restricted	is_active	duration_of_record
u32	str	str	f64	f64	f64	u32	str	str	f64	datetime[μs, UTC]	datetime[μs, UTC]	bool	bool	duration[μs]
58745	"COOPFISU1"	"FISH SPRINGS NWR"	4357.0	39.8401	-113.3978	73	"UT"	"America/Denver"	4357.0	null	null	false	false	null
63187	"UCL21"	"PelicanLake - Agrimet PELU"	4820.0	40.17422	-109.66659	26	"UT"	"America/Denver"	4822.8	1970-01-01 00:00:00 UTC	2024-11-10 06:00:00 UTC	false	true	20037d 6h
63191	"UCL25"	"Monroe - Agrimet MNRU"	5404.0	38.63411	-112.15766	26	"UT"	"America/Denver"	5278.9	1970-01-01 00:00:00 UTC	2024-11-10 06:00:00 UTC	false	true	20037d 6h
63192	"UCL26"	"CastleValley - Agrimet CSVU"	4685.0	38.64793	-109.39925	26	"UT"	"America/Denver"	4701.4	1970-01-01 00:00:00 UTC	2024-11-10 06:00:00 UTC	false	true	20037d 6h
1	"WBB"	"U of U William Browning Buildi…	4806.0	40.76623	-111.84755	153	"UT"	"America/Denver"	4727.7	1997-01-01 00:00:00 UTC	2024-11-10 06:00:00 UTC	false	true	10175d 6h
…	…	…	…	…	…	…	…	…	…	…	…	…	…	…
251182	"PC595"	"Bluff"	4368.0	37.28918	-109.55899	247	"UT"	"America/Denver"	null	2024-11-06 19:30:00 UTC	2024-11-10 06:00:00 UTC	false	true	3d 10h 30m
251284	"PC597"	"Huntington SW"	5816.0	39.31449	-110.98184	247	"UT"	"America/Denver"	null	2024-11-08 19:40:00 UTC	2024-11-10 06:00:00 UTC	false	true	1d 10h 20m
251289	"PC598"	"Catamount"	8323.0	38.82905	-111.62334	247	"UT"	"America/Denver"	null	2024-11-09 07:40:00 UTC	2024-11-10 06:00:00 UTC	false	true	22h 20m
59704	"COOPGUNU1"	"GUNLOCK PH"	4110.0	37.2805	-113.7283	77	"UT"	"America/Denver"	4107.6	2016-08-01 16:38:00 UTC	2016-07-31 14:00:00 UTC	false	false	-1d -2h -38m
48319	"LEGCY"	"Legacy Prep Academy"	4249.0	40.8676	-111.91678	12	"UT"	"America/Denver"	4252.0	2016-02-08 21:33:00 UTC	2016-02-02 19:30:00 UTC	false	false	-6d -2h -3m

All Stations#

It takes a few seconds, but you can get metadata for all Synoptic stations.

[4]:

%%time
s = synoptic.Metadata()

🚚💨 Speedy delivery from Synoptic metadata service.
📦 Received data from 103,528 stations.
CPU times: user 866 ms, sys: 3.88 s, total: 4.75 s
Wall time: 9.05 s

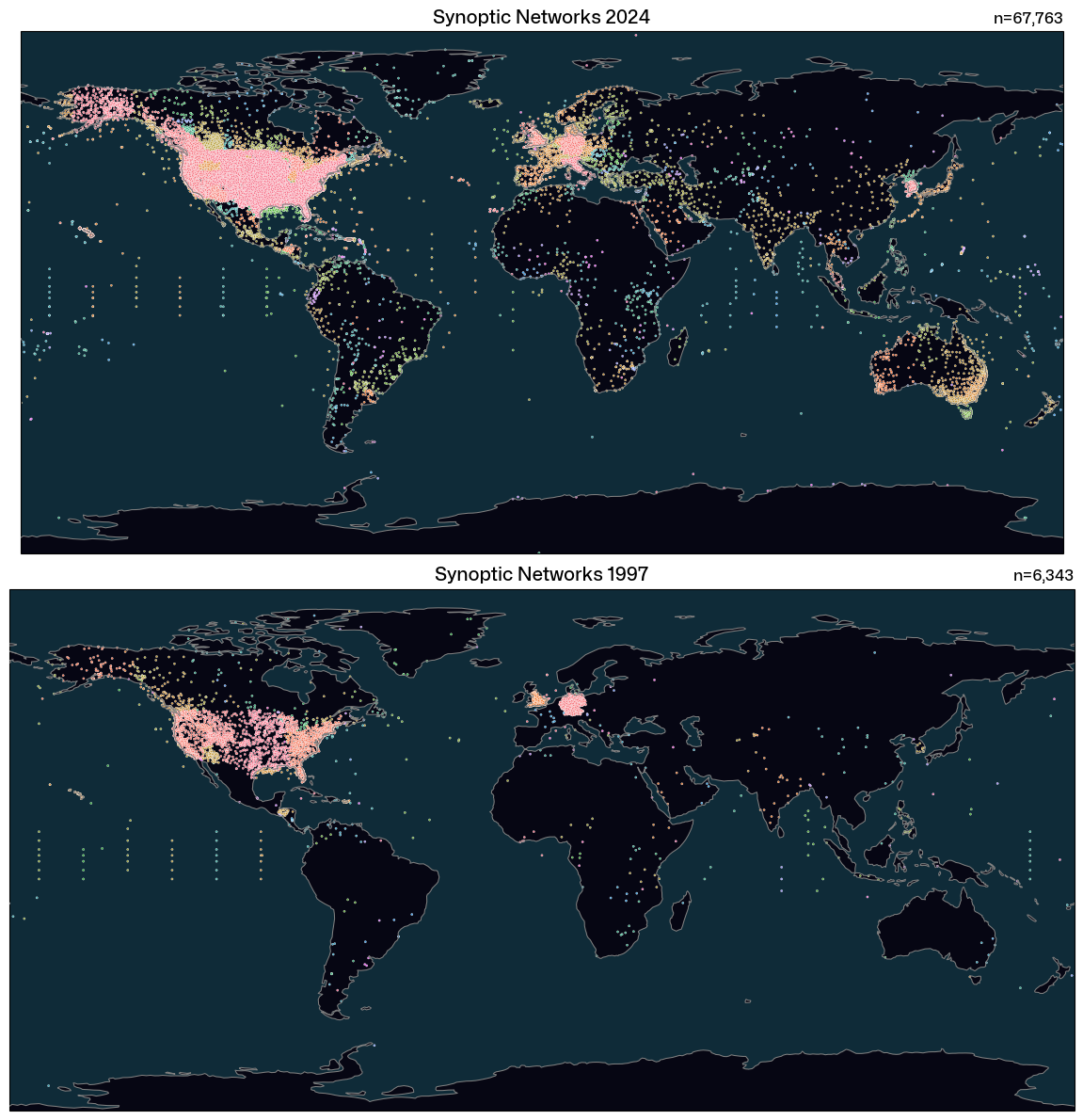

Let’s plot the location of all those stations, and color them by timezone. Just for fun, let’s also plot what available data existed in 1997. Of course, all this information is only as good as the metadata really is.

[5]:

in_2024 = synoptic.Metadata(obrange=datetime(2024, 1, 1)).df()
in_1997 = synoptic.Metadata(obrange=(datetime(1997, 1, 1), datetime(1998, 1, 1))).df()

fig, (ax1, ax2) = plt.subplots(2, 1, subplot_kw=dict(projection=pc))

for ax in (ax1, ax2):
    EasyMap(ax=ax, theme="dark", figsize=(12, 12)).OCEAN()

sns.scatterplot(
    in_2024.unique(["latitude", "longitude"]),
    ax=ax1,
    x="longitude",
    y="latitude",
    hue="timezone",
    legend=False,
    marker=".",
    s=10,
)

sns.scatterplot(
    in_1997.unique(["latitude", "longitude"]),
    ax=ax2,
    x="longitude",
    y="latitude",
    hue="timezone",
    legend=False,
    marker=".",
    s=10,
)

ax1.set_title("Synoptic Networks 2024", fontsize="x-large")
ax1.set_title(f"n={len(in_2024):,}", loc="right")

ax2.set_title("Synoptic Networks 1997", fontsize="x-large")
ax2.set_title(f"n={len(in_1997):,}", loc="right")

plt.tight_layout()

🚚💨 Speedy delivery from Synoptic metadata service.
📦 Received data from 67,763 stations.
🚚💨 Speedy delivery from Synoptic metadata service.
📦 Received data from 6,343 stations.

/home/blaylock/miniconda3/envs/synoptic2/lib/python3.12/site-packages/seaborn/_core/data.py:313: SettingWithCopyWarning: modifications to a method of a datetimelike object are not supported and are discarded. Change values on the original.
  return pd.api.interchange.from_dataframe(data)
/home/blaylock/miniconda3/envs/synoptic2/lib/python3.12/site-packages/seaborn/_core/data.py:313: SettingWithCopyWarning: modifications to a method of a datetimelike object are not supported and are discarded. Change values on the original.
  return pd.api.interchange.from_dataframe(data)
/home/blaylock/miniconda3/envs/synoptic2/lib/python3.12/site-packages/seaborn/_core/data.py:313: SettingWithCopyWarning: modifications to a method of a datetimelike object are not supported and are discarded. Change values on the original.
  return pd.api.interchange.from_dataframe(data)
/home/blaylock/miniconda3/envs/synoptic2/lib/python3.12/site-packages/seaborn/_core/data.py:313: SettingWithCopyWarning: modifications to a method of a datetimelike object are not supported and are discarded. Change values on the original.
  return pd.api.interchange.from_dataframe(data)
/home/blaylock/miniconda3/envs/synoptic2/lib/python3.12/site-packages/seaborn/_core/data.py:313: SettingWithCopyWarning: modifications to a method of a datetimelike object are not supported and are discarded. Change values on the original.
  return pd.api.interchange.from_dataframe(data)
/home/blaylock/miniconda3/envs/synoptic2/lib/python3.12/site-packages/seaborn/_core/data.py:313: SettingWithCopyWarning: modifications to a method of a datetimelike object are not supported and are discarded. Change values on the original.
  return pd.api.interchange.from_dataframe(data)

../../_images/user_guide_services_tutorials_Metadata_9_2.png

PG&E Stations#

[6]:

df = synoptic.Metadata(network=229).df()
df

🚚💨 Speedy delivery from Synoptic metadata service.
📦 Received data from 1,582 stations.

[6]:

shape: (1_582, 14)

id	stid	name	elevation	latitude	longitude	mnet_id	state	timezone	elev_dem	period_of_record_start	period_of_record_end	is_restricted	is_active
u32	str	str	f64	f64	f64	u32	str	str	f64	datetime[μs, UTC]	datetime[μs, UTC]	bool	bool
65233	"PG002"	"Highland Peak Road"	2487.0	37.81296	-121.80534	229	"CA"	"America/Los_Angeles"	2490.2	2018-05-11 22:07:00 UTC	2024-11-10 06:00:00 UTC	false	true
65234	"PG003"	"Page Mill Road"	2230.0	37.32591	-122.18035	229	"CA"	"America/Los_Angeles"	2217.8	2018-05-11 22:07:00 UTC	2024-11-10 06:00:00 UTC	false	true
65235	"PG004"	"Loma Prieta Road"	2964.0	37.09883	-121.85796	229	"CA"	"America/Los_Angeles"	2956.0	2018-05-11 22:07:00 UTC	2024-11-10 06:00:00 UTC	false	true
65236	"PG005"	"Franz Valley Road"	1060.0	38.56465	-122.68386	229	"CA"	"America/Los_Angeles"	1059.7	2018-05-11 22:07:00 UTC	2024-11-10 06:00:00 UTC	false	true
65237	"PG006"	"Hogback Road"	1033.0	37.91166	-122.57871	229	"CA"	"America/Los_Angeles"	971.1	2018-05-11 22:24:00 UTC	2024-11-10 06:00:00 UTC	false	true
…	…	…	…	…	…	…	…	…	…	…	…	…	…
246840	"492PG"	"French Bridge"	4113.0	39.24268	-122.84953	229	"CA"	"America/Los_Angeles"	null	2024-10-14 23:40:00 UTC	2024-11-10 06:00:00 UTC	false	true
247836	"578PG"	"West Sacramento"	8.0	38.50707	-121.57904	229	"CA"	"America/Los_Angeles"	null	2024-10-21 23:50:00 UTC	2024-11-10 06:00:00 UTC	false	true
247862	"616PG"	"Arroyo Seco Campground"	875.0	36.23525	-121.48049	229	"CA"	"America/Los_Angeles"	null	2024-10-22 20:40:00 UTC	2024-11-10 05:50:00 UTC	false	true
247869	"581PG"	"Dos Palos"	110.0	36.97466	-120.63433	229	"CA"	"America/Los_Angeles"	null	2024-10-24 02:40:00 UTC	2024-11-10 06:00:00 UTC	false	true
251183	"615PG"	"Lower Tunitas Creek Road"	556.0	37.37129	-122.35965	229	"CA"	"America/Los_Angeles"	null	2024-11-06 17:40:00 UTC	2024-11-10 05:50:00 UTC	false	true

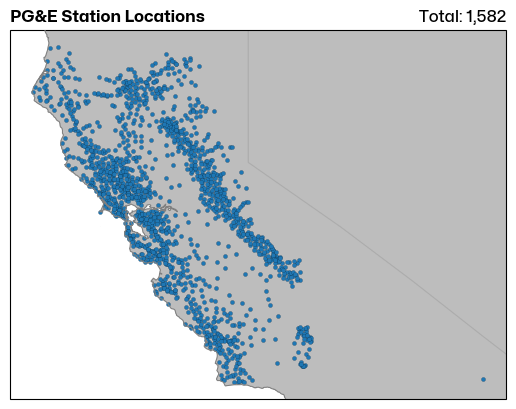

[43]:

ax = EasyMap("10m", theme="grey").OCEAN().STATES().ax

ax.scatter(df["longitude"], df["latitude"], marker=".", ec="k", lw=0.1)
ax.set_title("PG&E Station Locations", loc="left", fontweight="bold")
ax.set_title(f"Total: {len(df):,}", loc="right")

[43]:

Text(1.0, 1.0, 'Total: 1,582')

../../_images/user_guide_services_tutorials_Metadata_12_1.png

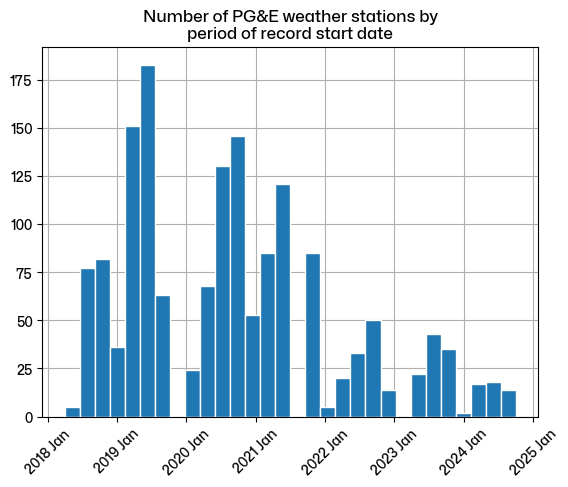

[38]:

from matplotlib.dates import DateFormatter

plt.hist(df["period_of_record_start"].dt.round("3mo"), bins=30, ec="w", zorder=10)
plt.grid()

plt.gca().tick_params(axis="x", labelrotation=45)
date_form = DateFormatter("%Y %b")
plt.gca().xaxis.set_major_formatter(date_form)

plt.title("Number of PG&E weather stations by\nperiod of record start date")

[38]:

Text(0.5, 1.0, 'Number of PG&E weather stations by\nperiod of record start date')

../../_images/user_guide_services_tutorials_Metadata_13_1.png
