🦾 Pivot from long to wide format#
Demonstrates the following:
Different Polars pivot manuevers to change long form to wide form DataFrames.
Data is returned as a long format, dataframe. This means there is one unique observation (air temperature, humidity, wind speed, etc.) per row. It’s often useful to pivot variables into columns. This can be done with Polars. I encourage users of SynopticPy to become familiar with Polars for DataFrame manipulation.
[1]:
from datetime import datetime, timedelta
import matplotlib.pyplot as plt
import polars as pl
import seaborn as sns
import synoptic
[2]:
s = synoptic.Latest(stid="ukbkb,wbb", vars="air_temp,dew_point_temperature")
df = s.df()
df
🚚💨 Speedy delivery from Synoptic's latest service.
📦 Received data from 2 stations (0.15 seconds).
[2]:
shape: (4, 21)
| stid | variable | sensor_index | is_derived | value | date_time | units | id | name | elevation | latitude | longitude | mnet_id | state | timezone | elev_dem | period_of_record_start | period_of_record_end | qc_flagged | is_restricted | is_active |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| str | str | u32 | bool | f64 | datetime[μs, UTC] | str | u32 | str | f64 | f64 | f64 | u32 | str | str | f64 | datetime[μs, UTC] | datetime[μs, UTC] | bool | bool | bool |
| "WBB" | "air_temp" | 1 | false | 0.972 | 2024-12-03 05:30:00 UTC | "Celsius" | 1 | "U of U William Browning Buildi… | 4806.0 | 40.76623 | -111.84755 | 153 | "UT" | "America/Denver" | 4727.7 | 1997-01-01 00:00:00 UTC | 2024-12-03 05:05:00 UTC | false | false | true |
| "UKBKB" | "air_temp" | 1 | false | 0.0 | 2024-12-03 05:30:00 UTC | "Celsius" | 37032 | "EW2355 Spanish Fork" | 4734.0 | 40.09867 | -111.62767 | 65 | "UT" | "America/Denver" | 4740.8 | 2013-03-13 00:00:00 UTC | 2024-12-03 05:00:00 UTC | false | false | true |
| "WBB" | "dew_point_temperature" | 1 | true | -3.49 | 2024-12-03 05:30:00 UTC | "Celsius" | 1 | "U of U William Browning Buildi… | 4806.0 | 40.76623 | -111.84755 | 153 | "UT" | "America/Denver" | 4727.7 | 1997-01-01 00:00:00 UTC | 2024-12-03 05:05:00 UTC | false | false | true |
| "UKBKB" | "dew_point_temperature" | 1 | true | -3.6 | 2024-12-03 05:30:00 UTC | "Celsius" | 37032 | "EW2355 Spanish Fork" | 4734.0 | 40.09867 | -111.62767 | 65 | "UT" | "America/Denver" | 4740.8 | 2013-03-13 00:00:00 UTC | 2024-12-03 05:00:00 UTC | false | false | true |
SynopticPy provides a basic pivot method that likely gets the job done in most cases.
[3]:
df.synoptic.pivot()
[3]:
shape: (2, 7)
| date_time | stid | latitude | longitude | elevation | air_temp | dew_point_temperature |
|---|---|---|---|---|---|---|
| datetime[μs, UTC] | str | f64 | f64 | f64 | f64 | f64 |
| 2024-12-03 05:30:00 UTC | "WBB" | 40.76623 | -111.84755 | 4806.0 | 0.972 | -3.49 |
| 2024-12-03 05:30:00 UTC | "UKBKB" | 40.09867 | -111.62767 | 4734.0 | 0.0 | -3.6 |
With a pivotted DataFrame, you can use the with_wind_uv method.
[4]:
synoptic.TimeSeries(stid="WBB", vars="wind_speed,wind_speed", recent="12h").df()
🚚💨 Speedy delivery from Synoptic's timeseries service.
📦 Received data from 1 stations (0.16 seconds).
[4]:
shape: (713, 21)
| stid | date_time | variable | sensor_index | is_derived | value | units | id | name | elevation | latitude | longitude | mnet_id | state | timezone | elev_dem | period_of_record_start | period_of_record_end | qc_flagged | is_restricted | is_active |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| str | datetime[μs, UTC] | str | u32 | bool | f64 | str | u32 | str | f64 | f64 | f64 | u32 | str | str | f64 | datetime[μs, UTC] | datetime[μs, UTC] | bool | bool | bool |
| "WBB" | 2024-12-02 17:39:00 UTC | "wind_speed" | 1 | false | 0.962 | "m/s" | 1 | "U of U William Browning Buildi… | 4806.0 | 40.76623 | -111.84755 | 153 | "UT" | "America/Denver" | 4727.7 | 1997-01-01 00:00:00 UTC | 2024-12-03 05:05:00 UTC | false | false | true |
| "WBB" | 2024-12-02 17:40:00 UTC | "wind_speed" | 1 | false | 0.561 | "m/s" | 1 | "U of U William Browning Buildi… | 4806.0 | 40.76623 | -111.84755 | 153 | "UT" | "America/Denver" | 4727.7 | 1997-01-01 00:00:00 UTC | 2024-12-03 05:05:00 UTC | false | false | true |
| "WBB" | 2024-12-02 17:41:00 UTC | "wind_speed" | 1 | false | 0.386 | "m/s" | 1 | "U of U William Browning Buildi… | 4806.0 | 40.76623 | -111.84755 | 153 | "UT" | "America/Denver" | 4727.7 | 1997-01-01 00:00:00 UTC | 2024-12-03 05:05:00 UTC | false | false | true |
| "WBB" | 2024-12-02 17:42:00 UTC | "wind_speed" | 1 | false | 0.427 | "m/s" | 1 | "U of U William Browning Buildi… | 4806.0 | 40.76623 | -111.84755 | 153 | "UT" | "America/Denver" | 4727.7 | 1997-01-01 00:00:00 UTC | 2024-12-03 05:05:00 UTC | false | false | true |
| "WBB" | 2024-12-02 17:43:00 UTC | "wind_speed" | 1 | false | 0.571 | "m/s" | 1 | "U of U William Browning Buildi… | 4806.0 | 40.76623 | -111.84755 | 153 | "UT" | "America/Denver" | 4727.7 | 1997-01-01 00:00:00 UTC | 2024-12-03 05:05:00 UTC | false | false | true |
| … | … | … | … | … | … | … | … | … | … | … | … | … | … | … | … | … | … | … | … | … |
| "WBB" | 2024-12-03 05:27:00 UTC | "wind_speed" | 1 | false | 0.509 | "m/s" | 1 | "U of U William Browning Buildi… | 4806.0 | 40.76623 | -111.84755 | 153 | "UT" | "America/Denver" | 4727.7 | 1997-01-01 00:00:00 UTC | 2024-12-03 05:05:00 UTC | false | false | true |
| "WBB" | 2024-12-03 05:28:00 UTC | "wind_speed" | 1 | false | 0.458 | "m/s" | 1 | "U of U William Browning Buildi… | 4806.0 | 40.76623 | -111.84755 | 153 | "UT" | "America/Denver" | 4727.7 | 1997-01-01 00:00:00 UTC | 2024-12-03 05:05:00 UTC | false | false | true |
| "WBB" | 2024-12-03 05:29:00 UTC | "wind_speed" | 1 | false | 0.319 | "m/s" | 1 | "U of U William Browning Buildi… | 4806.0 | 40.76623 | -111.84755 | 153 | "UT" | "America/Denver" | 4727.7 | 1997-01-01 00:00:00 UTC | 2024-12-03 05:05:00 UTC | false | false | true |
| "WBB" | 2024-12-03 05:30:00 UTC | "wind_speed" | 1 | false | 0.0 | "m/s" | 1 | "U of U William Browning Buildi… | 4806.0 | 40.76623 | -111.84755 | 153 | "UT" | "America/Denver" | 4727.7 | 1997-01-01 00:00:00 UTC | 2024-12-03 05:05:00 UTC | false | false | true |
| "WBB" | 2024-12-03 05:35:00 UTC | "wind_speed" | 1 | false | null | "m/s" | 1 | "U of U William Browning Buildi… | 4806.0 | 40.76623 | -111.84755 | 153 | "UT" | "America/Denver" | 4727.7 | 1997-01-01 00:00:00 UTC | 2024-12-03 05:05:00 UTC | false | false | true |
[5]:
df = (
synoptic.TimeSeries(stid="WBB", vars="wind_speed,wind_direction", recent="12h")
.df()
.synoptic.pivot()
.synoptic.with_wind_uv()
)
df
🚚💨 Speedy delivery from Synoptic's timeseries service.
📦 Received data from 1 stations (0.18 seconds).
[5]:
shape: (713, 9)
| date_time | stid | latitude | longitude | elevation | wind_speed | wind_direction | wind_u | wind_v |
|---|---|---|---|---|---|---|---|---|
| datetime[μs, UTC] | str | f64 | f64 | f64 | f64 | f64 | f64 | f64 |
| 2024-12-02 17:39:00 UTC | "WBB" | 40.76623 | -111.84755 | 4806.0 | 0.962 | 262.2 | 0.953099 | 0.130558 |
| 2024-12-02 17:40:00 UTC | "WBB" | 40.76623 | -111.84755 | 4806.0 | 0.561 | 304.1 | 0.464542 | -0.314518 |
| 2024-12-02 17:41:00 UTC | "WBB" | 40.76623 | -111.84755 | 4806.0 | 0.386 | 343.8 | 0.107691 | -0.370673 |
| 2024-12-02 17:42:00 UTC | "WBB" | 40.76623 | -111.84755 | 4806.0 | 0.427 | 301.7 | 0.363296 | -0.224376 |
| 2024-12-02 17:43:00 UTC | "WBB" | 40.76623 | -111.84755 | 4806.0 | 0.571 | 270.4 | 0.570986 | -0.003986 |
| … | … | … | … | … | … | … | … | … |
| 2024-12-03 05:27:00 UTC | "WBB" | 40.76623 | -111.84755 | 4806.0 | 0.509 | 204.9 | 0.214307 | 0.461685 |
| 2024-12-03 05:28:00 UTC | "WBB" | 40.76623 | -111.84755 | 4806.0 | 0.458 | 218.4 | 0.284486 | 0.358932 |
| 2024-12-03 05:29:00 UTC | "WBB" | 40.76623 | -111.84755 | 4806.0 | 0.319 | 216.9 | 0.191534 | 0.255099 |
| 2024-12-03 05:30:00 UTC | "WBB" | 40.76623 | -111.84755 | 4806.0 | 0.0 | null | null | null |
| 2024-12-03 05:35:00 UTC | "WBB" | 40.76623 | -111.84755 | 4806.0 | null | null | null | null |
[ ]:
Customized pivots#
[6]:
df = synoptic.TimeSeries(stid="WBB", vars="wind_speed,wind_speed", recent="12h").df()
df.pivot(
on="variable",
index=["date_time", "stid", "latitude", "longitude", "elevation"],
values="value",
)
🚚💨 Speedy delivery from Synoptic's timeseries service.
📦 Received data from 1 stations (0.17 seconds).
[6]:
shape: (713, 6)
| date_time | stid | latitude | longitude | elevation | wind_speed |
|---|---|---|---|---|---|
| datetime[μs, UTC] | str | f64 | f64 | f64 | f64 |
| 2024-12-02 17:39:00 UTC | "WBB" | 40.76623 | -111.84755 | 4806.0 | 0.962 |
| 2024-12-02 17:40:00 UTC | "WBB" | 40.76623 | -111.84755 | 4806.0 | 0.561 |
| 2024-12-02 17:41:00 UTC | "WBB" | 40.76623 | -111.84755 | 4806.0 | 0.386 |
| 2024-12-02 17:42:00 UTC | "WBB" | 40.76623 | -111.84755 | 4806.0 | 0.427 |
| 2024-12-02 17:43:00 UTC | "WBB" | 40.76623 | -111.84755 | 4806.0 | 0.571 |
| … | … | … | … | … | … |
| 2024-12-03 05:27:00 UTC | "WBB" | 40.76623 | -111.84755 | 4806.0 | 0.509 |
| 2024-12-03 05:28:00 UTC | "WBB" | 40.76623 | -111.84755 | 4806.0 | 0.458 |
| 2024-12-03 05:29:00 UTC | "WBB" | 40.76623 | -111.84755 | 4806.0 | 0.319 |
| 2024-12-03 05:30:00 UTC | "WBB" | 40.76623 | -111.84755 | 4806.0 | 0.0 |
| 2024-12-03 05:35:00 UTC | "WBB" | 40.76623 | -111.84755 | 4806.0 | null |
Special Case: Multiple Sensors#
If your set of stations has multiple sensors the measure the same variable (e.g., NAA measures outdoor air temperature and greenhouse air temperature) you will need to take care with how you perform your pivot. Either filter the rows for a single sensor ID, or pivot on both the variable and sensor columns.
[7]:
# Notice that NAA has two different reports for air temperature
df = synoptic.Latest(stid="naa", vars="air_temp,wind_speed").df()
df
🚚💨 Speedy delivery from Synoptic's latest service.
📦 Received data from 1 stations (0.15 seconds).
[7]:
shape: (3, 21)
| stid | variable | sensor_index | is_derived | value | date_time | units | id | name | elevation | latitude | longitude | mnet_id | state | timezone | elev_dem | period_of_record_start | period_of_record_end | qc_flagged | is_restricted | is_active |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| str | str | u32 | bool | f64 | datetime[μs, UTC] | str | u32 | str | f64 | f64 | f64 | u32 | str | str | f64 | datetime[μs, UTC] | datetime[μs, UTC] | bool | bool | bool |
| "NAA" | "air_temp" | 1 | false | -2.017 | 2024-12-03 05:30:00 UTC | "Celsius" | 43136 | "Neil Armstrong Academy" | 4260.0 | 40.71152 | -112.01448 | 153 | "UT" | "America/Denver" | 4252.0 | 2014-05-27 00:00:00 UTC | 2024-12-03 05:00:00 UTC | false | false | true |
| "NAA" | "air_temp" | 2 | false | 2.556 | 2024-12-03 05:30:00 UTC | "Celsius" | 43136 | "Neil Armstrong Academy" | 4260.0 | 40.71152 | -112.01448 | 153 | "UT" | "America/Denver" | 4252.0 | 2014-05-27 00:00:00 UTC | 2024-12-03 05:00:00 UTC | false | false | true |
| "NAA" | "wind_speed" | 1 | false | 0.19 | 2024-12-03 05:30:00 UTC | "m/s" | 43136 | "Neil Armstrong Academy" | 4260.0 | 40.71152 | -112.01448 | 153 | "UT" | "America/Denver" | 4252.0 | 2014-05-27 00:00:00 UTC | 2024-12-03 05:00:00 UTC | false | false | true |
[8]:
# Filter sensor ID, then pivot
df.filter(sensor_index=1).pivot(
"variable", index=["stid", "date_time", "latitude", "longitude"], values="value"
)
[8]:
shape: (1, 6)
| stid | date_time | latitude | longitude | air_temp | wind_speed |
|---|---|---|---|---|---|
| str | datetime[μs, UTC] | f64 | f64 | f64 | f64 |
| "NAA" | 2024-12-03 05:30:00 UTC | 40.71152 | -112.01448 | -2.017 | 0.19 |
[9]:
# Pivot on both variable and sensor column
df.pivot(
["variable", "sensor_index"],
index=["stid", "date_time", "latitude", "longitude"],
values="value",
)
[9]:
shape: (1, 7)
| stid | date_time | latitude | longitude | {"air_temp",1} | {"air_temp",2} | {"wind_speed",1} |
|---|---|---|---|---|---|---|
| str | datetime[μs, UTC] | f64 | f64 | f64 | f64 | f64 |
| "NAA" | 2024-12-03 05:30:00 UTC | 40.71152 | -112.01448 | -2.017 | 2.556 | 0.19 |
[10]:
df.pivot(
["variable", "sensor_index"],
index=["stid", "date_time", "latitude", "longitude"],
values="value",
).columns
[10]:
['stid',
'date_time',
'latitude',
'longitude',
'{"air_temp",1}',
'{"air_temp",2}',
'{"wind_speed",1}']
Special Case: Measured and derived values#
Some stations have both measured and derived variables, like dew point temperature. Your pivot options are
Filter to use only the measured value
Pivot on both
variableandderivedcolumns.Use an aggregattion function to take mean or first of the two values.
[11]:
df = synoptic.Latest(stid="KU69", vars="wind_speed,dew_point_temperature").df()
df
🚚💨 Speedy delivery from Synoptic's latest service.
📦 Received data from 1 stations (0.23 seconds).
[11]:
shape: (3, 21)
| stid | variable | sensor_index | is_derived | value | date_time | units | id | name | elevation | latitude | longitude | mnet_id | state | timezone | elev_dem | period_of_record_start | period_of_record_end | qc_flagged | is_restricted | is_active |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| str | str | u32 | bool | f64 | datetime[μs, UTC] | str | u32 | str | f64 | f64 | f64 | u32 | str | str | f64 | datetime[μs, UTC] | datetime[μs, UTC] | bool | bool | bool |
| "KU69" | "dew_point_temperature" | 1 | false | -8.0 | 2024-12-03 05:15:00 UTC | "Celsius" | 6470 | "DUCHESNE" | 5826.0 | 40.1919 | -110.38099 | 1 | "UT" | "America/Denver" | 5810.4 | 2007-10-11 00:00:00 UTC | 2024-12-03 04:35:00 UTC | false | false | true |
| "KU69" | "wind_speed" | 1 | false | 2.572 | 2024-12-03 05:15:00 UTC | "m/s" | 6470 | "DUCHESNE" | 5826.0 | 40.1919 | -110.38099 | 1 | "UT" | "America/Denver" | 5810.4 | 2007-10-11 00:00:00 UTC | 2024-12-03 04:35:00 UTC | false | false | true |
| "KU69" | "dew_point_temperature" | 1 | true | -8.09 | 2024-12-03 05:15:00 UTC | "Celsius" | 6470 | "DUCHESNE" | 5826.0 | 40.1919 | -110.38099 | 1 | "UT" | "America/Denver" | 5810.4 | 2007-10-11 00:00:00 UTC | 2024-12-03 04:35:00 UTC | false | false | true |
[12]:
# Pivot, calculate the mean if more than one value per variable
df.pivot("variable", index="stid", values="value", aggregate_function="mean")
[12]:
shape: (1, 3)
| stid | dew_point_temperature | wind_speed |
|---|---|---|
| str | f64 | f64 |
| "KU69" | -8.045 | 2.572 |
[13]:
# Pivot, use the first value if more than one value per variable
df.pivot("variable", index="stid", values="value", aggregate_function="first")
[13]:
shape: (1, 3)
| stid | dew_point_temperature | wind_speed |
|---|---|---|
| str | f64 | f64 |
| "KU69" | -8.0 | 2.572 |
[14]:
# Pivot on both variable and derived columns
df.sort("variable").pivot(
["variable", "is_derived"],
index=["stid", "latitude", "longitude"],
values="value",
)
[14]:
shape: (1, 6)
| stid | latitude | longitude | {"dew_point_temperature",false} | {"dew_point_temperature",true} | {"wind_speed",false} |
|---|---|---|---|---|---|
| str | f64 | f64 | f64 | f64 | f64 |
| "KU69" | 40.1919 | -110.38099 | -8.0 | -8.09 | 2.572 |
Pivot many station variables#
Let’s pivot requests with more station data…
[15]:
df = synoptic.Latest(
state="UT",
network=[1, 2],
vars="air_temp,dew_point_temperature",
units="english",
complete=1, # to get mesonet shortname
).df()
# Pivot
df = df.pivot(
"variable",
index=["stid", "latitude", "longitude", "shortname"],
values="value",
aggregate_function="first",
)
df
🚚💨 Speedy delivery from Synoptic's latest service.
📦 Received data from 130 stations (0.22 seconds).
[15]:
shape: (130, 6)
| stid | latitude | longitude | shortname | air_temp | dew_point_temperature |
|---|---|---|---|---|---|
| str | f64 | f64 | str | f64 | f64 |
| "KSLC" | 40.77069 | -111.96503 | "ASOS/AWOS" | 33.98 | 27.95 |
| "KU42" | 40.6196 | -111.99016 | "ASOS/AWOS" | 30.74 | 25.99 |
| "KHIF" | 41.11112 | -111.96229 | "ASOS/AWOS" | 33.8 | 25.57 |
| "KOGD" | 41.19406 | -112.01681 | "ASOS/AWOS" | 33.8 | 24.67 |
| "KBMC" | 41.5464 | -112.0601 | "ASOS/AWOS" | 28.58 | 24.01 |
| … | … | … | … | … | … |
| "TT509" | 37.32322 | -112.18486 | "RAWS" | 32.0 | 15.26 |
| "KSPK" | 40.145 | -111.6677 | "ASOS/AWOS" | 37.4 | 22.8 |
| "TT773" | 38.62606 | -111.9419 | "RAWS" | 22.0 | -3.57 |
| "KU64" | 37.93243 | -109.34122 | "ASOS/AWOS" | 27.14 | 17.82 |
| "K40U" | 40.9833 | -109.6833 | "ASOS/AWOS" | 18.32 | 15.75 |
[16]:

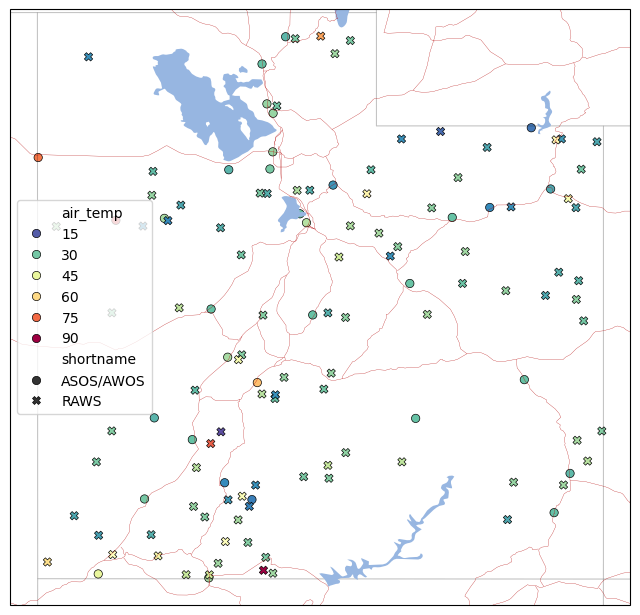

# Plot on a map
from herbie.toolbox import EasyMap, ccrs, pc
ax = EasyMap("10m", figsize=(8, 8)).STATES().LAKES().ROADS().ax
art = sns.scatterplot(
df.filter(pl.col("longitude") < -60), # One station has bad longitude metadata
ax=ax,
x="longitude",
y="latitude",
hue="air_temp",
style="shortname",
edgecolor="k",
palette="Spectral_r",
)
/home/blaylock/miniconda3/envs/synoptic2/lib/python3.12/site-packages/pyproj/__init__.py:89: UserWarning: pyproj unable to set database path.
_pyproj_global_context_initialize()
[ ]:
